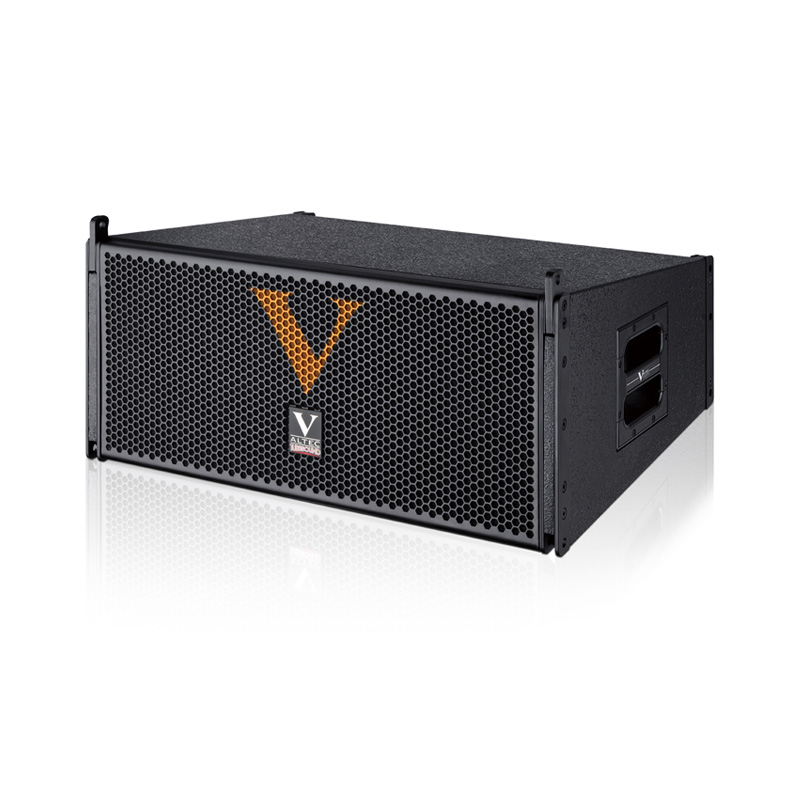

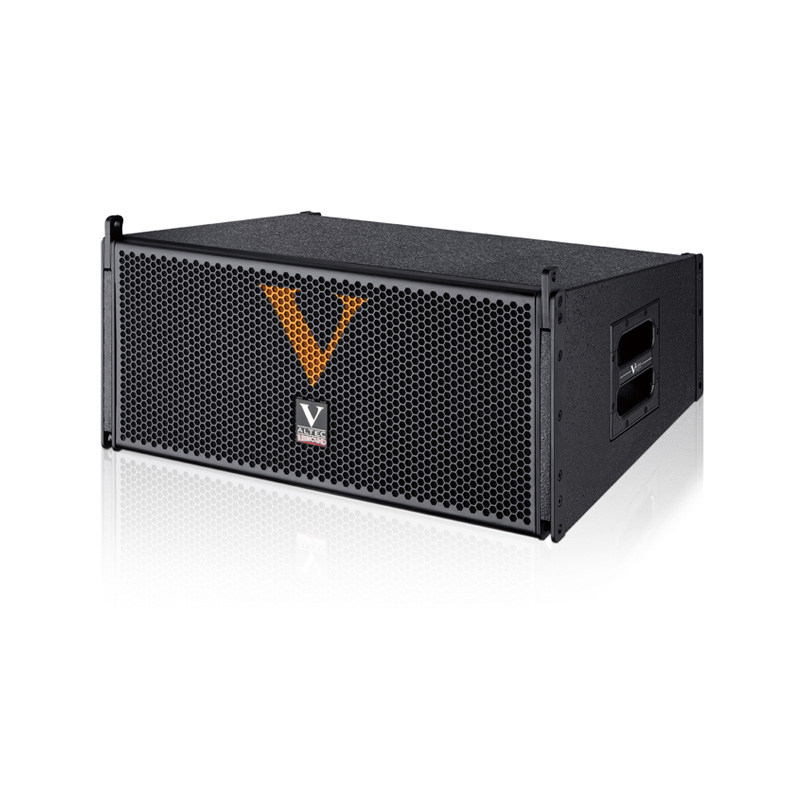

VQL series Waterproof line array speaker
Model：VQ6L、VQ8L、VQ10L、VQ12L
The Valtec Tubesound VQ ® series compact line array system combines mature and reliable line array technologies such as the new generation neodymium magnetic unit, BASS PHASE TYPE TM low-frequency phase plug technology (patented low-frequency phase plug loading technology), and optimized acoustic structure box. Its birth is of great significance and redefines our understanding of the past. External high-power amplifier drive, supplemented by DSP line array controller and software, efficiently and quickly obtain linear smooth high sound pressure.
The Valtec Tubesound VQ ® series compact line array system combines mature and reliable line array technologies such as the new generation neodymium magnetic unit, BASS PHASE TYPE TM low-frequency phase plug technology (patented low-frequency phase plug loading technology), and optimized acoustic structure box. Its birth is of great significance and redefines our understanding of the past. External high-power amplifier drive, supplemented by DSP line array controller and software, efficiently and quickly obtain linear smooth high sound pressure.
- ◆ Low frequency: 2 x 6.5 inch low frequency;
◆ High pitch: 1 x 1.75 inch high pitch;
◆ Power: Low frequency: 300W (8 Ω); High frequency: 50W (8 Ω);
◆ Sensitivity (1W/1m): LF98dB/HF103dB;
◆ Maximum sound pressure level: Low frequency: 108dB; High frequency: 123dB;
◆ Suggested minimum/maximum frequency: bass minimum frequency: 1.2KHz/maximum frequency: 150Hz; High pitch minimum frequency: 19KHz/maximum frequency: 1.2KHz;
◆ Frequency response range (± 3dB): 60HZ-19KHZ;
◆ Accessories: Suspension system;
◆ Size: 505mm * 225mm * 290mm;
◆ Weight: 11KG
◆ Low frequency 500W/8 Ω: 2 * 8-inch neodymium magnetic low frequency 250W (16 Ω) mid low frequency horn loading;
◆ High pitched 80W/8 Ω: 1 * 3 inch 80W (8 Ω) compressed high pitched horn loading;
◆ Sensitivity: LF98dB/HF102dB;
◆ Maximum sound pressure level: low-frequency 128dB/high-frequency 131dB;
◆ Frequency response range (± 3dB): 65HZ-18KHZ;
◆ Suggested minimum/maximum frequency: bass minimum frequency: 80Hz/maximum frequency: 1.59kHz; High pitch minimum frequency: 1.59KHz/maximum frequency: 19KHz;
◆ Coverage angle: 90 ° * 3 °;
◆ Socket: 2 * Neutrik NL4 speaker;
◆ Accessories: Suspension system;
◆ Dimensions: 660mm wide, 515mm deep, 287mm high;
◆ Weight: 30KG;
◆ Low frequency 650W/8 Ω: 2 * 10 inch neodymium magnetic low frequency 325W (16 Ω) mid low frequency horn loading;
◆ High pitched 80W/8 Ω: 1 * 3 inch 80W (8 Ω) compressed high pitched horn loading;
◆ Box structure: all birch plywood, black gold sand spray coating, special waterproof process treatment.
◆ Sensitivity: LF98dB/HF103dB;
◆ Maximum sound pressure level: low frequency 130dB/high frequency 133dB;
◆ Frequency response range (± 3dB): 60HZ-18KHZ;
◆ Suggested minimum/maximum frequency: bass minimum frequency: 80Hz/maximum frequency: 1.59kHz; High pitch minimum frequency: 1.59KHz/maximum frequency: 19KHz;
◆ Coverage angle: 90 ° * 3 °;
◆ Socket: 2 * Neutrik NL4 speaker;
◆ Accessories: Suspension system;
◆ Dimensions: 660mm wide, 515mm deep, 287mm high;
◆ Weight: 30KG;
◆ Low frequency 800W/8 Ω: 2 * 12 inch neodymium magnetic low frequency 400W (16 Ω) mid low frequency horn loading;
◆ High pitched 80W/8 Ω: 1 * 3 inch 80W (8 Ω) compressed high pitched horn loading;
◆ Sensitivity: LF98dB/HF105dB;
◆ Maximum sound pressure level: low frequency 135dB/high frequency 138dB;
◆ Frequency response range (± 3dB): 55HZ-19KHZ;
◆ Suggested lowest/highest frequency: Bass lowest frequency: 80Hz/highest frequency: 1.59kHz High lowest frequency: 1.59KHz/highest frequency: 19KHz
◆ Coverage angle: 90 ° * 3 °;
◆ Socket: 2 * NEUTRLK NL8;
◆ Accessories: Suspension system;
◆ Dimensions: 820mm long, 365mm wide, and 565mm deep
◆ Weight: 37KG
