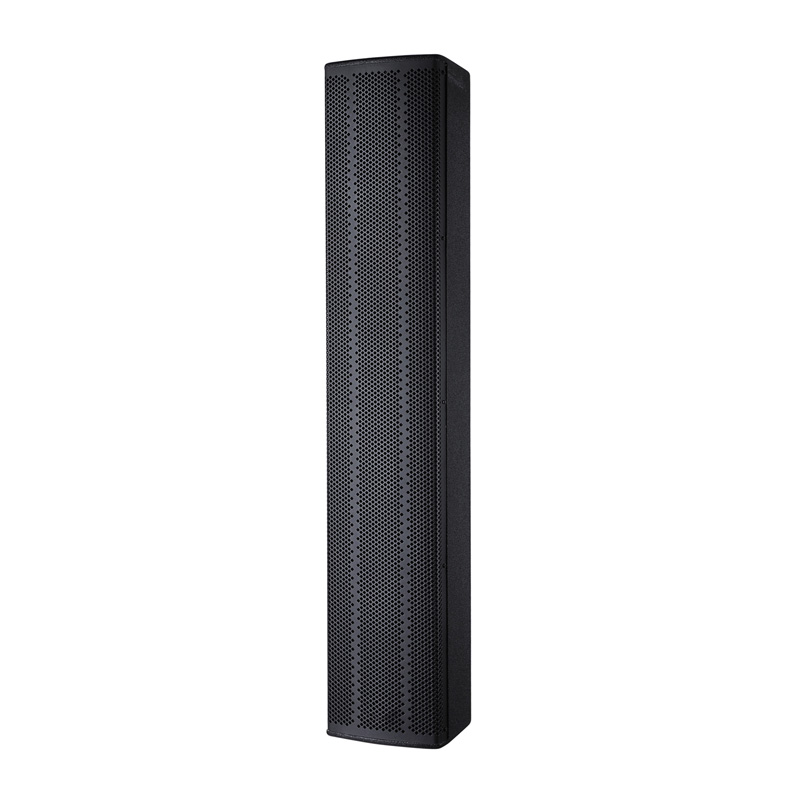

Q series Line column speaker
Model：Q-2045、Q-4045、Q-9045、Q-4045H、Q-6045H
It greatly improves the ratio of direct sound to reflected sound, suitable for music and vocal processing in fixed installation places with high reverberation. It is applied in multifunctional halls, banquet halls, conference rooms, music bars, teaching and other sound reinforcement places, and can demonstrate excellent language clarity. The sound field can be processed point-to-point according to the current situation.
•Full frequency compact wooden column speaker
•High density board wooden box, surface sprayed with water-based paint protection, original and unique steel mesh design
•Provide wall mounting bracket holes to increase radiation width and reduce vertical radiation lobe width, effectively preventing whistling
•Due to the excellent increase in the ratio of direct sound to reflected sound, it is suitable for music and vocal processing in fixed installation places with high reverberation. It is applied in multifunctional halls, banquet halls, conference rooms, music bars, teaching and other sound reinforcement places, and can demonstrate excellent language clarity. Based on the on-site point-to-point processing of sound field effects.
- Suggested amplifier power 350 W
Long term power of 80 W
Instantaneous power 160 W
Impedance 4 Ω
Frequency response 100Hz -20KHz
Full frequency unit 2 x 4.5 "-25 voice coils
Sensitivity 94 dB
Maximum sound pressure continuous/peak 114 dB/120 dB
Diffusion angle H x V 150 ° x 10 °
Suggest high pass filtering at 100Hz -24dB harmonics
Input connection 2 x pure copper extruded cylindrical input
Volume (width x height x depth) 146x300x150 mm
Net weight kg 3.5 Kg
Suggested amplifier power 350 W
Long term power 160 W
Instantaneous power 400 W
Impedance 8 Ω
Frequency response 100Hz -20KHz
Full frequency unit 4 x 4.5 "-25 voice coils
Sensitivity 96 dB
Maximum sound pressure continuous/peak 120 dB/123 dB
Diffusion angle H x V 150 ° x 10 °
Suggest high pass filtering at 100Hz -24dB harmonics
Input connection 2 x pure copper extruded cylindrical input
Volume (width x height x depth) 146x545x150 mm
Net weight kg 6.5 Kg
Suggested amplifier power: 650W
Rated power: 360 W
Instantaneous power: 720 W
Impedance: 8 Ω
Frequency response: 100Hz -18KHz
Full frequency unit: 9 x 4.5 "-25mm voice coil
Sensitivity: 100 dB
Maximum sound pressure continuous/peak: 128dB/134dB
Diffusion angle H x V: 140 ° x 15 °
Suggested high pass filtering: 100Hz -24dB harmonics
Input connection: 2 x pure copper extruded cylindrical input
Volume (width x height x depth): 146x1150x150 mm
Net weight: 14 Kg
Suggested amplifier power 350 W
Long term power 160 W+30 W
Instantaneous power 320 W+60 W
Impedance 8 Ω
Frequency response 100Hz -20KHz
Low frequency unit 4 x 4.5 "-1 voice coil
High frequency unit 1 x 1.25 "high-efficiency titanium film horn tweeter
Sensitivity 97 dB (@ 1W/1m)
Maximum sound pressure continuous/peak 120 dB/123 dB
Diffusion angle H x V 150 ° x 10 °
Suggest high pass filtering at 100Hz -24dB harmonics
Input connection 2 x pure copper extruded cylindrical input
Volume (width x height x depth) 146x650x150 mm
Net weight kg 8 Kg
Suggested amplifier power 450 W
Long term power W 240+30
Instantaneous power 480 W+60 W
Impedance 6 Ω
Frequency response 100Hz -20KHz
Low frequency unit 6 x 4.5 "-1 voice coil
High frequency unit 1 x 1.25 "high-efficiency titanium film horn tweeter
Sensitivity 99 dB
Maximum sound pressure continuous/peak 124 dB/127 dB
Diffusion angle H x V 150 ° x 10 °
Suggest high pass filtering at 100Hz -24dB harmonics
Input connection 2 x pure copper extruded cylindrical input
Volume (width x height x depth) mm 146x865x150
Net weight kg 10 Kg
