    L seriesWire pillar speaker

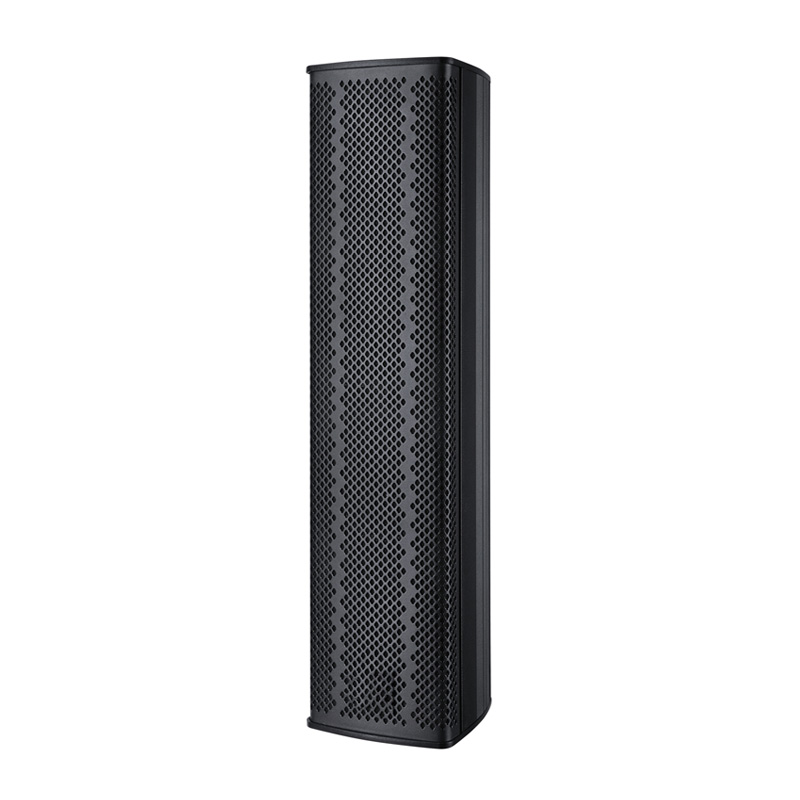

    L series Wire pillar speaker

    Model:L-4045、L-9045

    Applied to multifunctional halls, banquet halls, conference rooms, music cafes, teaching and other sound reinforcement venues, conference rooms and other places, it can display excellent language clarity and can process sound effects point-to-point according to the scene. Adopting die cast stretched aluminum box, surface sprayed with imported fine sand baking paint for protection, waterproof and sunscreen treatment technology, original and unique steel mesh design

    Description

    Full frequency compact aluminum alloy column speaker (waterproof)
    Adopting die cast stretched aluminum box, surface sprayed with imported fine sand baking paint for protection, waterproof and sunscreen treatment technology, original and unique steel mesh design
    Provide wall mounting bracket holes to increase radiation width and reduce vertical radiation lobe width, effectively preventing whistling
    Due to its excellent increase in the ratio of direct sound to reflected sound, it is suitable for music and vocal processing in fixed installation areas with high reverberation. It is applied in multi-functional halls, banquet halls, conference rooms, music cafes, teaching and other sound reinforcement venues, conference rooms and other places, and can display excellent language clarity. The sound field can be processed point-to-point according to the on-site situation.

    Parameter
      Suggested amplifier power: 300 W
      Rated power: 160 W
      Instantaneous power: 320 W
      Impedance: 8 Ω
      Frequency response: 100Hz -20KHz
      Full frequency unit: 4 x 4.5 "-25mm voice coil
      Sensitivity: 97 dB
      Maximum sound pressure continuous/peak: 122dB/128dB
      Diffusion angle H x V: 150 ° x 10 °
      Suggested high pass filtering: 100Hz -24dB harmonics
      Input connection: 4 x Euroblock
      Volume (width x height x depth): 132x540x125 mm
      Net weight: 6.5 Kg

      Suggested amplifier power: 600 W
      Rated power: 360 W
      Instantaneous power: 720 W
      Impedance: 8 Ω
      Frequency response: 100Hz -20KHz
      Full frequency unit: 9 x 4.5 "-25mm voice coil
      Sensitivity: 100 dB
      Maximum sound pressure continuous/peak: 128dB/134dB
      Diffusion angle H x V: 150 ° x 10 °
      Suggested high pass filtering: 100Hz -24dB harmonics
      Input connection: 4 x Euroblock
      Volume (width x height x depth): 132x1100x125 mm
      Net weight: 14 Kg
