Products

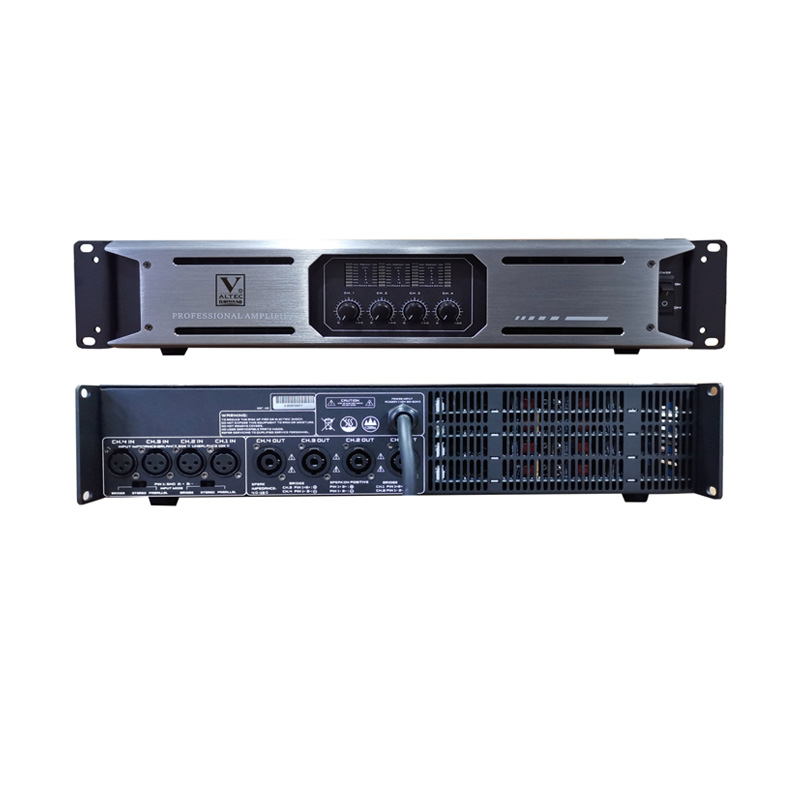

4CH series Four channel professional amplifier
Model：4CH250、4CH350、4CH450、4CH600、4CH800、4CH1000
Four channel professional amplifier
Description
Four channel professional amplifier
Parameter
- ◆ Power: 4 x 250W/8 Ω 4 x 350W/4 Ω
◆ Frequency response: 20Hz-20KHz+0/-0.3dB
◆ Input impedance: 20K Ω (balanced)
◆ Input sensitivity: 1Vrms
◆ Conversion rate: 20V/uS (10KHz)
◆ Channel isolation: ≥ 70dB
◆ Signal to noise ratio: ≥ 100dB
◆ Total harmonic distortion: THD+N ≤ 0.08%
◆ Intermodulation distortion: ≤ 0.06%
◆ Common mode rejection ratio: CMR ≥ 70dB (20Hz-20KHz)
◆ Net weight: 14Kg
◆ Size: 483mm (W) x 325mm (D) x 88mm (H)
◆ Power: 4 x 350W/8 Ω 4 x 500W/4 Ω
◆ Frequency response: 20Hz-20KHz+0/-0.3dB
◆ Input impedance: 20K Ω (balanced)
◆ Input sensitivity: 1Vrms
◆ Conversion rate: 20V/uS (10KHz)
◆ Channel isolation: ≥ 70dB
◆ Signal to noise ratio: ≥ 100dB
◆ Total harmonic distortion: THD+N ≤ 0.08%
◆ Intermodulation distortion: ≤ 0.06%
◆ Common mode rejection ratio: CMR ≥ 70dB (20Hz-20KHz)
◆ Net weight: 15Kg
◆ Size: 483mm (W) x 325mm (D) x 88mm (H)
◆ Power: 4 x 450W/8 Ω 4 x 650W/4 Ω
◆ Frequency response: 20Hz-20KHz+0/-0.3dB
◆ Input impedance: 20K Ω (balanced)
◆ Input sensitivity: 1Vrms
◆ Conversion rate: 20V/uS (10KHz)
◆ Channel isolation: ≥ 70dB
◆ Signal to noise ratio: ≥ 100dB
◆ Total harmonic distortion: THD+N ≤ 0.08%
◆ Intermodulation distortion: ≤ 0.06%
◆ Common mode rejection ratio: CMR ≥ 70dB (20Hz-20KHz)
◆ Net weight: 17Kg
◆ Size: 483mm (W) x 325mm (D) x 88mm (H)
◆ Power: 4 × 650W/8 Ω 4 × 1000W/4 Ω
◆ Frequency response: 20Hz-20KHz+0/-0.3dB
◆ Input impedance: 20K Ω (balanced)
◆ Input sensitivity: 1Vrms
◆ Conversion rate: 20V/uS (10KHz)
◆ Channel isolation: ≥ 70dB
◆ Signal to noise ratio: ≥ 100dB
◆ Total harmonic distortion: THD+N ≤ 0.08%
◆ Intermodulation distortion: ≤ 0.06%
◆ Common mode rejection ratio: CMR ≥ 70dB (20Hz-20KHz)
◆ Net weight: 18Kg
◆ Size: 483mm (W) x 385mm (D) x 88mm (H)
◆ Power: 4 × 800W/8 Ω 4 × 1250W/4 Ω
◆ Frequency response: 20Hz-20KHz+0/-0.3dB
◆ Input impedance: 20K Ω (balanced)
◆ Input sensitivity: 1Vrms
◆ Conversion rate: 20V/uS (10KHz)
◆ Channel isolation: ≥ 70dB
◆ Signal to noise ratio: ≥ 100dB
◆ Total harmonic distortion: THD+N ≤ 0.08%
◆ Intermodulation distortion: ≤ 0.06%
◆ Common mode rejection ratio: CMR ≥ 70dB (20Hz-20KHz)
◆ Net weight: 19Kg
◆ Size: 483mm (W) x 385mm (D) x 88mm (H)
◆ Power: 4 × 1000W/8 Ω 4 × 1550W/4 Ω
◆ Frequency response: 20Hz-20KHz+0/-0.3dB
◆ Input impedance: 20K Ω (balanced)
◆ Input sensitivity: 1Vrms
◆ Conversion rate: 20V/uS (10KHz)
◆ Channel isolation: ≥ 70dB
◆ Signal to noise ratio: ≥ 100dB
◆ Total harmonic distortion: THD+N ≤ 0.08%
◆ Intermodulation distortion: ≤ 0.06%
◆ Common mode rejection ratio: CMR ≥ 70dB (20Hz-20KHz)
◆ Net weight: 20Kg
◆ Size: 483mm (W) x 385mm (D) x 88mm (H)
* Page content update time：07-13-2024,The relevant information on the website is for reference only. All products are subject to physical inspection and are subject to change without prior notice.
