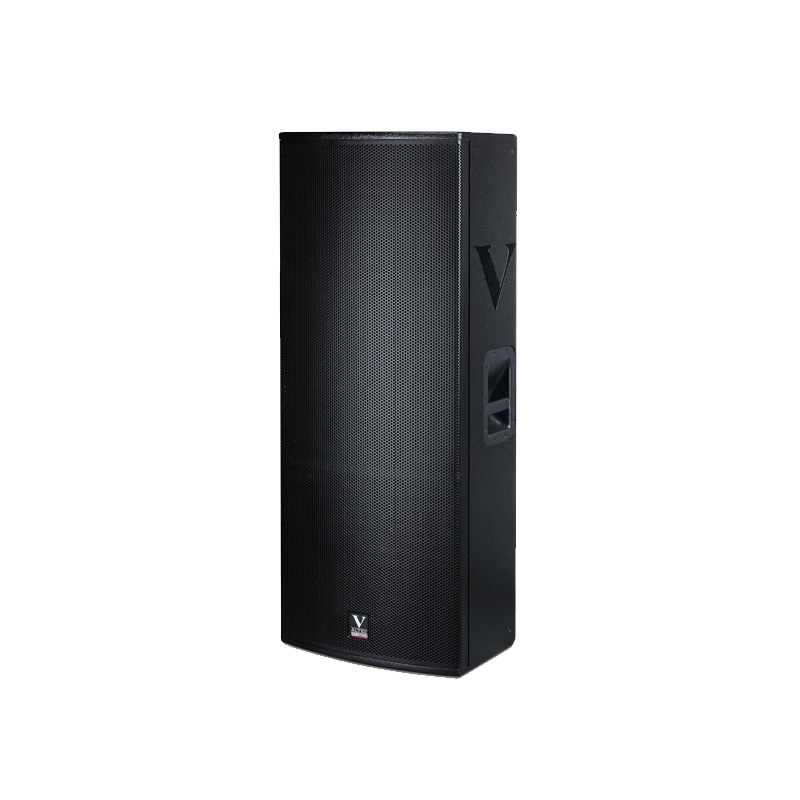

    VMH seriesFull range speaker

    VMH series Full range speaker

    Model:VMH-8、VMH-10、VMH-12、VMH-15、VMH-25A

    The VMH Business High end Series speakers are specifically designed for various high-end indoor and outdoor performance venues, performance halls, party rooms, KTV private rooms, bars, and other places. This series uses high-end high-frequency compression drivers, which have delicate, deep, and durable sound. The unit can withstand high-power loads for a long time, ensuring the service life of the equipment. The high-power low-frequency unit ensures the stability of large dynamic signal power and maintains the best dynamic distortion response, continuing the large dynamic and high-definition low-frequency response. At the same time, due to the use of aluminum alloy material in the design concept of the VMH series high-frequency horn, the high-frequency dynamic sound pressure level can be effectively improved, improving sound clarity.

    Description

    The VMH Business High end Series speakers are specifically designed for various high-end indoor and outdoor performance venues, performance halls, party rooms, KTV private rooms, bars, and other places. This series uses high-end high-frequency compression drivers, which have delicate, deep, and durable sound. The unit can withstand high-power loads for a long time, ensuring the service life of the equipment. The high-power low-frequency unit ensures the stability of large dynamic signal power and maintains the best dynamic distortion response, continuing the large dynamic and high-definition low-frequency response. At the same time, due to the use of aluminum alloy material in the design concept of the VMH series high-frequency horn, the high-frequency dynamic sound pressure level can be effectively improved, improving sound clarity.

    Parameter
      ◆ Treble unit: 1 x 1.35 "treble unit;
      ◆ Low frequency unit: 1x8 "low frequency unit;
      ◆ Rated power: 250W;
      ◆ Frequency response: 65Hz-18KHz (± 3dB);
      ◆ Sensitivity: 96dB;
      ◆ Maximum sound pressure level: 120dB
      ◆ Angle (H x V): 90 ° x 60 °;
      ◆ Frequency division point: 2KHz;
      ◆ Socket: 2 x NL4 Speakon;
      ◆ Size (W x D x H): 312 x 312 x 485mm;
      ◆ Weight: 16kg;

      ◆ Treble unit: 1 x 1.75 "treble unit;
      ◆ Low frequency unit: 1 x 10 "low frequency unit;
      ◆ Rated power: 300W;
      ◆ Frequency response: 60Hz-18KHz (± 3dB);
      ◆ Sensitivity: 97dB;
      ◆ Maximum sound pressure level: 122dB
      ◆ Angle (H x V): 90 ° x 60 °;
      ◆ Frequency division point: 2KHz;
      ◆ Socket: 2 x NL4 Speakon;
      ◆ Size (W x D x H): 323 x 323 x 493mm;
      ◆ Weight: 18kg;

      ◆ Treble unit: 1 x 1.75 "treble unit;
      ◆ Low frequency unit: 1 x 12 "low frequency unit;
      ◆ Rated power (W): 430W
      ◆ Frequency response: 65Hz-19KHz (± 3dB);
      ◆ Sensitivity: 99dB;
      ◆ Maximum sound pressure level: 126dB
      ◆ Angle (H x V): 90 ° x 60 °;
      ◆ Frequency division point: 1.8KHz;
      ◆ Socket: 2 x NL4 Speakon;
      ◆ Size (W x D x H): 400 x 400 x 648mm;
      ◆ Weight: 22kg;

      ◆ Treble unit: 1 x 3 "treble unit;
      ◆ Low frequency unit: 1 x 15 "low frequency unit;
      ◆ Rated power (W): 480W;
      ◆ Frequency response: 55Hz-19KHz (± 3dB);
      ◆ Sensitivity: 100dB;
      ◆ Maximum sound pressure level: 128dB
      ◆ Angle (H x V): 90 ° x 60 °;
      ◆ Frequency division point: 1.5KHz;
      ◆ Socket: 2 x NL4 Speakon;
      ◆ Size (W x D x H): 440 x 453 x 710mm;
      ◆ Weight: 33kg;

      ◆ Low frequency: 1 x 15 inches low frequency;
      ◆ Subwoofer: 1 x 15 inch low frequency;
      ◆ High pitched: 1 x 3 inches compressed high frequency;
      ◆ Power (4 Ω): 800W;
      ◆ Sensitivity (1w/1m): 101dB;
      ◆ Maximum sound pressure level: 128dB;
      ◆ Frequency response range (± 3dB): 45HZ-18KHZ;
      ◆ Coverage angle (H * V): 80 ° * 50 °;
      ◆ Frequency division point: 1.2KHz;
      ◆ Socket: 2 * NL4;
      ◆ Size (W * D * H): 550 * 500 * 1160mm;
      ◆ Weight: 65KG
