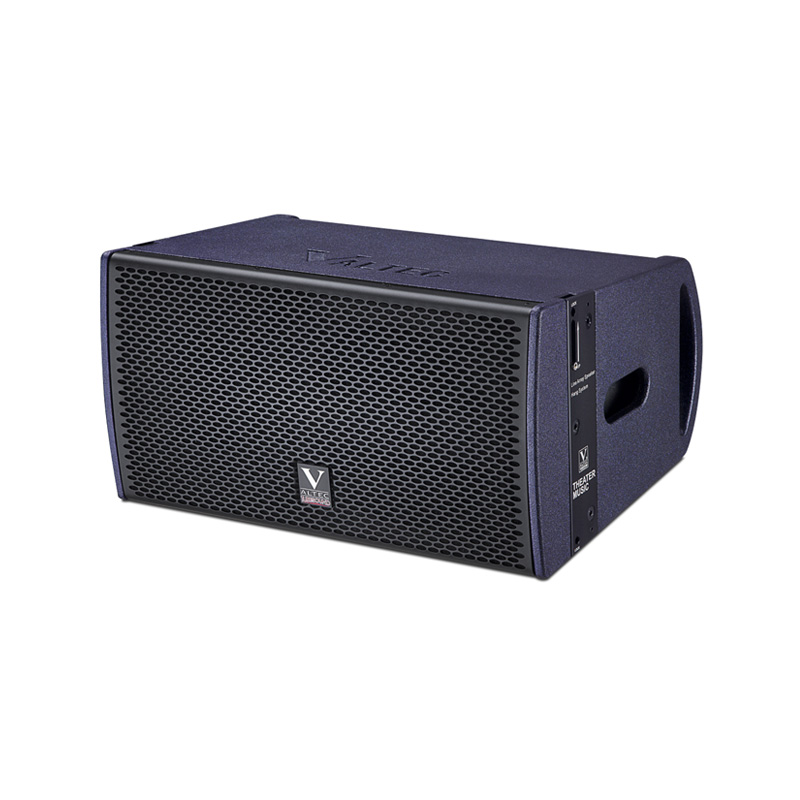

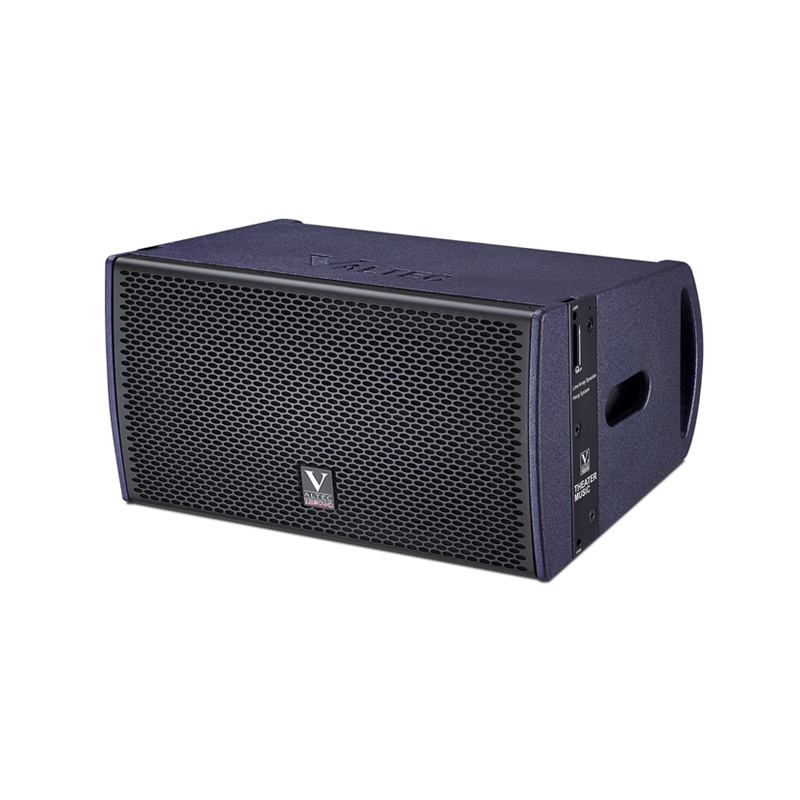

VQP series Active line array speaker
Model：VQ106P、VQ108P、VQ110P
The brand new compact active line array system, paired with precisely tuned DSP power amplifiers, provides a more lightweight and flexible professional sound reinforcement solution for small and medium-sized applications, with precise sound field control and small space occupation. In terms of material selection, structural design, and product performance, the product adopts cutting-edge ideas in the current professional audio field, and combines numerous innovative elements, extending towards miniaturization and intelligence as another product series.
The brand new compact active line array system, paired with precisely tuned DSP power amplifiers, provides a more lightweight and flexible professional sound reinforcement solution for small and medium-sized applications, with precise sound field control and small space occupation. In terms of material selection, structural design, and product performance, the product adopts cutting-edge ideas in the current professional audio field, and combines numerous innovative elements, extending towards miniaturization and intelligence as another product series.
- Frequency response: 80 Hz~18 kHz (± 3 dB) 60 Hz~20 kHz (-10 dB)
Nominal directivity (-6dB): 100 ° (H) 10 ° (V)
Sensitivity (@ 1W/1m): HF/LF: 108 dB SPL/92 dB SPL
Speaker power: HF/LF: 60W/200W (AES)
Impedance: HF/LF: 8/8 ohm
Maximum sound pressure level: HF: 130 dB SPL peak
LF:121 dB SPL peak
Speaker unit: 1 x 6.5 "bass (65mm voice coil)
1 x 1 "compressed treble (34mm voice coil)
physical data
Height x width x depth: 191 x 350 x 260mm
Weight: 9 kg
Connector: 2x4 core Neutrik NL4 speaker socket
Connection method: HF: 1+1- LF: 2+2-
Box material: 18mm birch multi-layer plywood
Surface treatment: black chameleon polyurea paint
Grid mesh: black oval hole steel mesh and transparent waterproof speaker fabric
Angles: 0, 1.5, 3, 4.5, 6, 7.5 ° adjustable
Frequency response: 80 Hz~18 kHz (± 3 dB) 60 Hz~20 kHz (-10 dB)
Nominal directivity (-6dB): 100 ° (H) 10 ° (V)
Sensitivity (@ 1W/1m): HF/LF: 111 dB SPL/95 dB SPL
Speaker power: HF/LF: 60W/280W (AES)
Impedance: HF/LF: 8/8 ohm
Maximum sound pressure level: HF: 134 dB SPL peak
LF:122 dB SPL peak
Speaker unit: 1x8 "bass (65mm voice coil)
1 x 34 "compressed treble (34mm voice coil)
physical data
Height x width x depth: 231 x 430 x 325 mm
Weight: 11 kg
Connector: 2x4 core Neutrik NL4 speaker socket
Connection method: HF: 1+1- LF: 2+2-
Box material: 18mm birch multi-layer plywood
Surface treatment: black chameleon polyurea paint
Grid mesh: black oval hole steel mesh and transparent waterproof speaker fabric
Angles: 0, 1.5, 3, 4.5, 6, 7.5 ° adjustable
Frequency response: 80 Hz~18 kHz (± 3 dB) 60 Hz~20 kHz (-10 dB)
Nominal directivity (-6dB): 100 ° (H) 10 ° (V)
Sensitivity (@ 1W/1m): HF/LF: 112 dB SPL/96 dB SPL
Speaker power: HF/LF: 80W/350W (AES)
Impedance: HF/LF: 8/8 ohm
Maximum sound pressure level: HF: 137 dB SPL peak
LF:127 dB SPL peak
Speaker unit: 1 x 10 "bass (75mm voice coil)
1 x 1.75 "compressed treble (44mm voice coil)
physical data
Height x width x depth: 275 x 520 x 380mm
Weight: 13 kg
Connector: 2x4 core Neutrik NL4 speaker socket
Connection method: HF: 1+1- LF: 2+2-
Box material: 18mm birch multi-layer plywood
Surface treatment: black chameleon polyurea paint
Grid mesh: black oval hole steel mesh and transparent waterproof speaker fabric
Angles: 0, 1.5, 3, 4.5, 6, 7.5 ° adjustable
