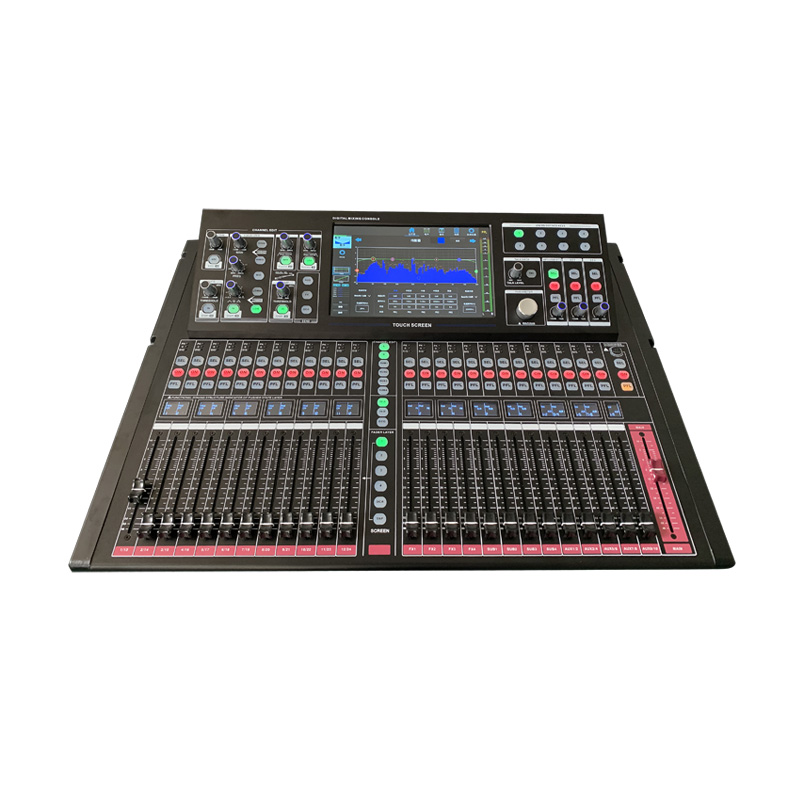

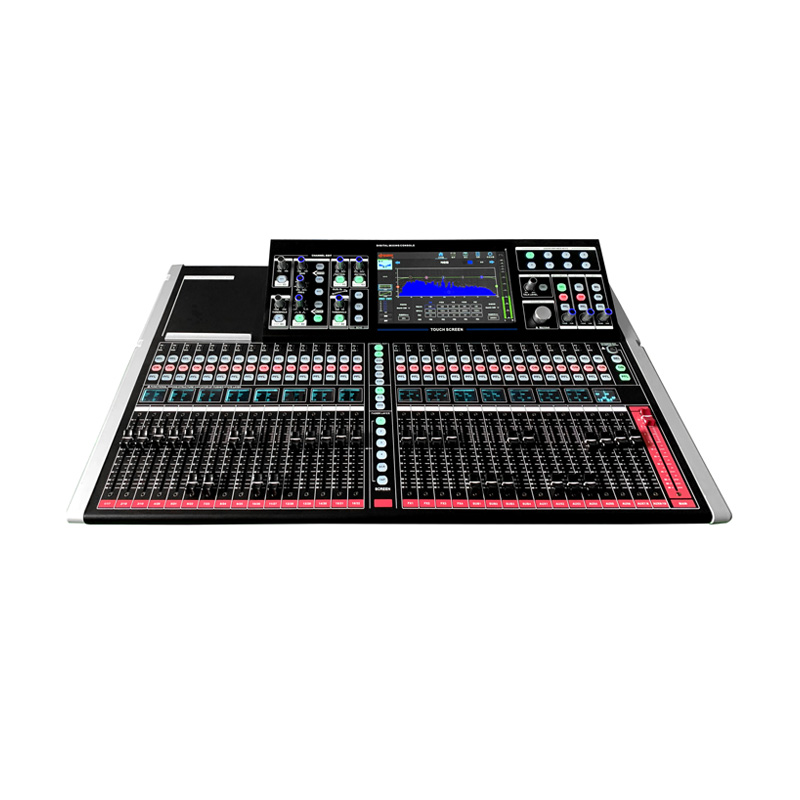

DM-Plus series Mixer
Model：DM20-Plus、DM24-Plus、DM32-Plus
Developed based on the Linux operating system, it is not afraid of viruses and runs more securely and stably. 5-core CPU processor, 1.8G clock speed, fast startup, faster running speed. 10.1-inch 1280 * 800 high-definition touch display, Chinese and English operation interface, free switching, easier to use. Automatically save shutdown parameters, no need to worry about data loss
Supports up to 42 signal inputs and 26 signal outputs
Local input/output:
26 signal inputs (22 analog+4 digital)
(16 MIC/Line inputs, 2 sets of 3.5 lotus stereo inputs, 1 set of 3.5 stereo headphone input interface, 2 sets of digital inputs: sound card, MP3, AES digital inputs)
18 signal outputs
(Main output L, R, 8-channel AUX1-8 auxiliary output, 4-channel SUB grouping output, 1-channel stereo headphone monitoring output, AES output)
Supporting connection to stage interface box
Support Dante:
Optional 32x32 Dante version card for Dante signal input and output, supporting channel playback and recording
Fully processed 50 signal input channels and 28 signal output channels
Local input/output:
34 signal inputs (30 analog+4 digital)
(24 MIC/Line inputs, 2 sets of 3.5 Lotus stereo inputs, 1 set of 3.5 stereo headphone input interface, 2 sets of digital inputs: sound card, MP3, AES digital input)
20 signal outputs
(Main output L, R, 10 AUX1-10 auxiliary outputs, 4 SUB grouping outputs, 1 stereo headphone monitoring output, AES output)
Support connection to stage interface box
Supports audio expansion cards:
Optional 32x32 Dante version card for Dante signal input and output, supporting multi track recording
Supports 58 signal inputs and 28 signal outputs
Local input/output:
42 signal inputs (38 analog+4 digital)
(32 MIC/Line inputs, 2 sets of 3.5 Lotus stereo inputs, 1 set of 3.5 stereo headphone input interface, 2 sets of digital inputs: sound card, MP3, AES digital input)
20 signal outputs
(Main output L, R, 4-channel SUB grouping output, 10 AUX1-10 auxiliary outputs, 1 stereo headphone monitoring output, AES output)
Support connection to stage interface box
Support Dante:
Optional 64x64 Dante version card for Dante signal input and output, supporting multi track recording
- • Channel guided display screen
• MIC input gain adjustment (smooth digital gain, participating in saving to the scene) Mic input channel (Linked) parity tuning
•+48V phantom power supply (MIC channels can be independently turned on and off, participating in saving to the scene)
• Mic input channel independent feedback suppressor effectively suppresses howling
• Each input channel is equipped with a built-in voltage limiter, noise gate, phase, high and low pass filters, 5-stage parameter equalization, delay, and channel audiovisual balance adjustment
• Fast copy function of channel parameters
• Each channel is equipped with a multifunctional menu, mute and monitoring functions
• Each channel is equipped with a 100MM stroke electric push rod (19 ALPS electric push rods)
• Independent physical pusher control for input/output and effect channels
• Each channel pusher supports user-defined layer functions
• Two push button layers for flipping pages (input for flipping pages, output and effects for fixed push buttons, making operation more convenient and fast)
• 8 customizable physical buttons
• 8 DCA groups, 8 silent groups
• Independent feedback suppressor management for each channel
• Equipped with a signal generator (pink noise/positive noise/white noise), customizable to output from any one or more output channels
• Equipped with real-time spectrum RTA function (color editable)
• Support dual machine synchronous data backup
• Channel and scene editing support for Chinese input method
• Integrated automatic mixing function
• Supports Talkback microphone function
• Support MIDI interface input
• AUX output (pusher front/back) can be set
• Output channel processing: high and low pass filtering, 15 stage parameter equalization, main output 31 stages (GEQ supports manipulation on the pusher), compressor, delay, phase
• USB 8 * 8 channel playback and recording function
• Built in sound card (mobile phone, iPad, MP3, PC direct playback, recording)
• 8 quick scene call modes, 100 scene storage, customizable scene names, support for Chinese input, seamless scene switching, no sound interruption, support for USB import and export
• Built in 4 independent DSP effectors locally, with multiple preset effect modes for users to use directly
• BFX foot switch interface
• 12V output interface, can be connected to external lighting equipment
• Can restore factory settings with just one click
• Support 232 central control
• Multi operating system control software (IOS system, Android system, Windows system)
• Support wired network port adjustment (or external router wireless adjustment)
• 10.1-inch 1280 * 800 high-definition capacitive touch screen
